Fig.2

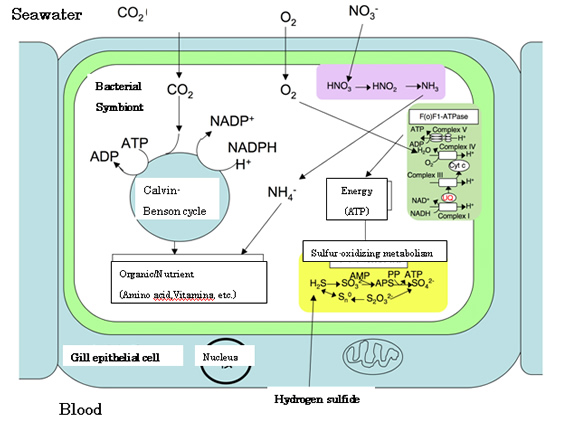

Metabolic map of bacterial symbiont estimated from its genome
(1)
Yellow indicates sulfur-oxidizing metabolic pathway that intake energy by oxidizing hydrogen sulfide taken by its host.
(2)
Blue circle (Calvin-Benson cycle) is carbon-fixation circuit. It synthesize hydrocarbon organic out of carbon dioxide in autotrophic way.
