Change of the stress regime in the Pacific plate caused by the 2011 Tohoku Earthquake

Overview

After the 2011 M 9.0 Tohoku earthquake, numerous intraplate earthquakes occurred beneath the outer slope of the Japan Trench. JAMSTEC researchers carried out ocean bottom seismograph observations on the outer slope of the Japan Trench from late April to early July 2011, to examine hypocenter distributions and focal mechanisms. This work was supported in part by the Special Coordination Funds for the Promotion of Science and Technology (Ministry of Education, Culture, Sports, Science and Technology, Japan) titled "the integrated research for the 2011 off the Pacific coast of Tohoku earthquake".
The observed results indicate that the stress regime at around 40 km depth in the incoming Pacific plate had changed from compression to tension after the 2011 Tohoku earthquake. This change of the stress regime likely relates to the increased activity of the normal-faulting earthquakes within the Pacific plate after the 2011 M 9.0 Tohoku earthquake.
This study will appear in the Geophysical Research Letters on 31 January 2012.


Title:
Normal-faulting earthquakes beneath the outer slope of the Japan Trench after the 2011 Tohoku earthquake: Implications for the stress regime in the incoming Pacific plate
Authors:
Koichiro Obana1, Gou Fujie1, Tsutomu Takahashi1, Yojiro Yamamoto1, Yasuyuki Nakamura1, Shuichi Kodaira1, Narumi Takahashi2, Yoshiyuki Kaneda2, and Masanao Shinohara3
1.
Institute for Research on Earth Evolution, Japan Agency for Marine-Earth Science and Technology, Yokohama, Japan.
2.
Earthquake and Tsunami Research Project for Disaster Prevention, Japan Agency for Marine-Earth Science and Technology, Yokohama, Japan.
3.
Earthquake Research Institute, University of Tokyo, Tokyo, Japan.

For more information>>
Geophysical Research Letters
http://www.agu.org/pubs/crossref/2012/2011GL050399.shtml

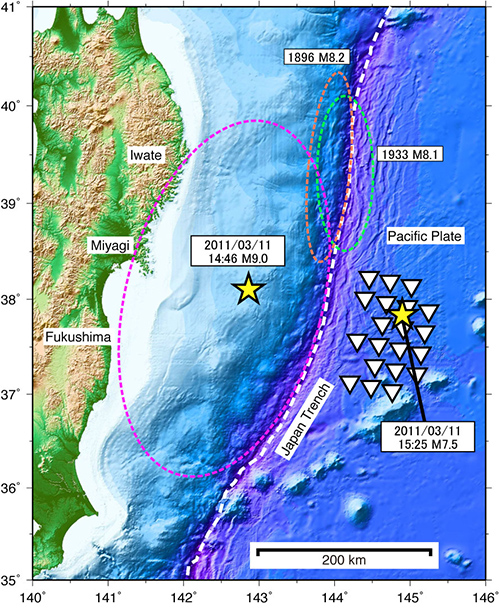

Figure 1. Bathymetric map showing locations of ocean bottom seismographs (inverted triangles).
Epicenters (stars) of the mainshock (M 9.0) and the outer trench slope normal-faulting earthquake (M 7.5) are shown. The dashed circles indicate rupture area of each earthquake.

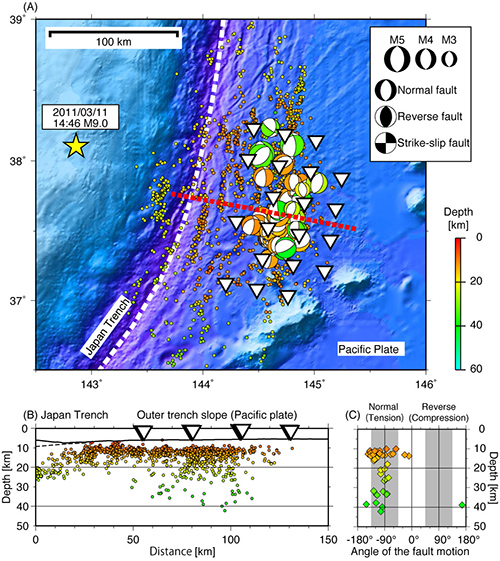

Figure 2. Observed results.
(A): Hypocenter distribution and focal mechanisms obtained from OBS observations. (B): Cross section along the red dashed line in (A). The earthquakes occurred in the Pacific plate at depths shallower than about 40 km. (C): Depth versus angle of the fault motion with respect to the strike. The earthquakes had normal-faulting focal mechanisms (angle near -90°) at all depths.

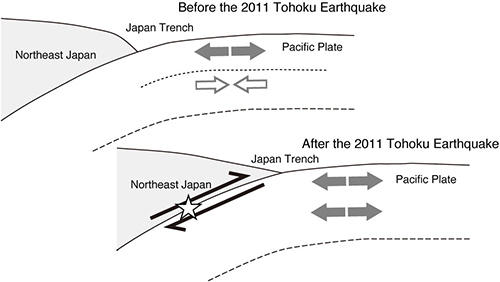

Figure 3: Comparison of the stress regime in the Pacific plate before and after the 2011 Tohoku Earthquake.
Before the 2011 earthquake, stresses in the Pacific plate were tensional in the upper layers of the oceanic lithosphere and compressional beneath. On the other hand, the tensional stresses extend to depths of about 40 km after the 2011 earthquake.
