The configuration of the m-TRITON buoy and the m-TRITON surface float are shown in Fig. 1 and Fig. 2. The specifications of buoy parts are given in Table 1. We adopted slack-line type mooring (the mooring line is longer than water depth) to reduce the tension along the mooring line (Fig. 1). Thus, we can use smaller size parts such as surface float, shackles, chains, and anchor (Fig. 2 and Table 1), and make total system small, light with less construction and maintenance costs.
Figure 1: Schematic figure of the m-TRITON mooring system

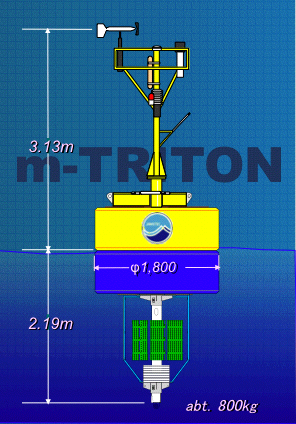

Figure 2: Schematic figure of the m-TRITON surface float
Table 1: m-TRITON mooring parts specifications
| Surface float | diameter |
1.8 m |
weight |
800 kg | |
displacement |
3200 kg | |
buoyancy |
2400 kg | |
| Mooring line | ||
wire cable |
diameter |
14 mm (10 mm without polyethylene coating) |
others |
length 500 m, breaking strength 60 kN | |
nylon rope |
diameter |
17 mm |
others |
length depends on depth, breaking strength 70 kN | |
polypropylene rope |
diameter |
19 mm |
others |
length depends on depth, breaking strength 60 kN | |
| Underwater float for recovery |
diameter |
0.4 m (sphere) x 12 |
weight |
17.7 kg x 12 | |
buoyancy |
25.4 kg x 12 | |
material |
glass | |
| Releaser | style |
double acoustic releasers |
| Anchor | weight |
3500 kg (in air) |
| Data transmission | under water |
Inductive coupling data communication system |
satellite |
ARGOS system |
