Mooring configuration

The configuration of the TRITON buoy and the TRITON surface float are shown in Fig. 1 and Fig. 2. The specifications of buoy parts are given in Table 1.

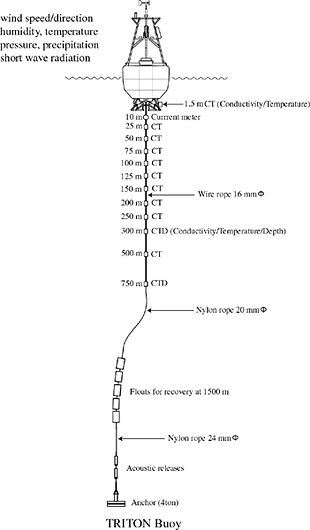

Figure 1  Schematic figure of the TRITON mooring system.

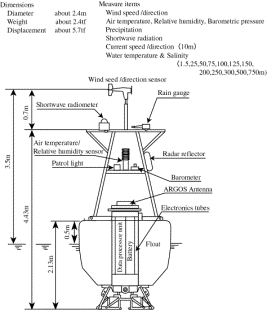

Figure 2  Schematic figure of the TRITON surface float.



Table 1  TRITON mooring parts specifications.
