| Variables | File | Units | Comments |
|---|---|---|---|

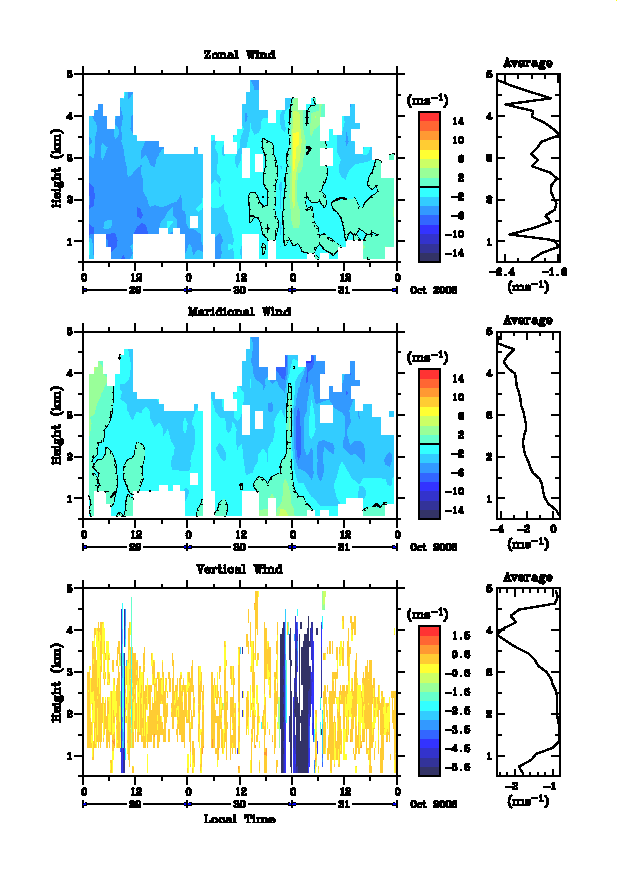

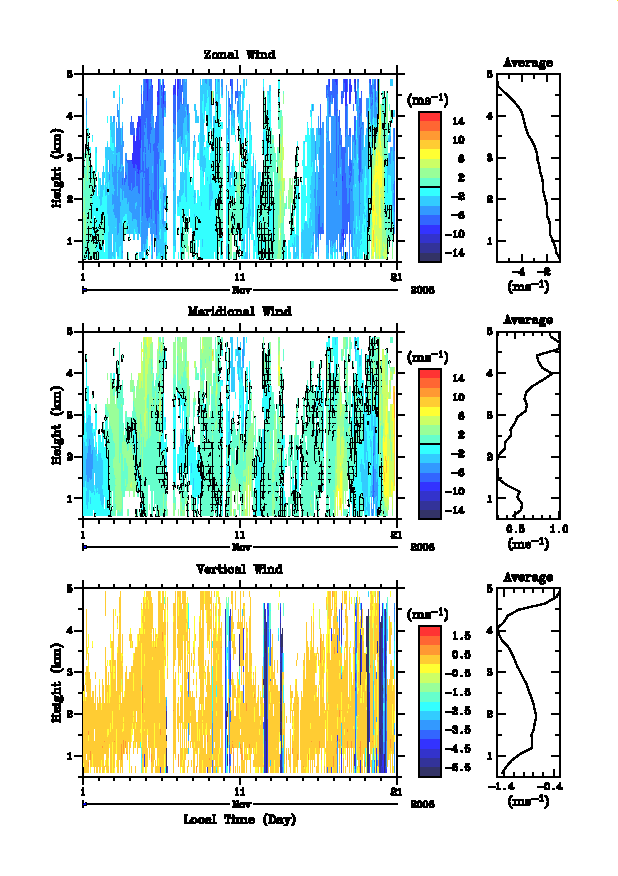

| Zonal wind | uwnd | m/s | Westerly wind is positive |
| Meridional wind | vwnd | m/s | Southerly wind is positive |
| Vertical wind | wwnd | m/s | Upflow is positive |

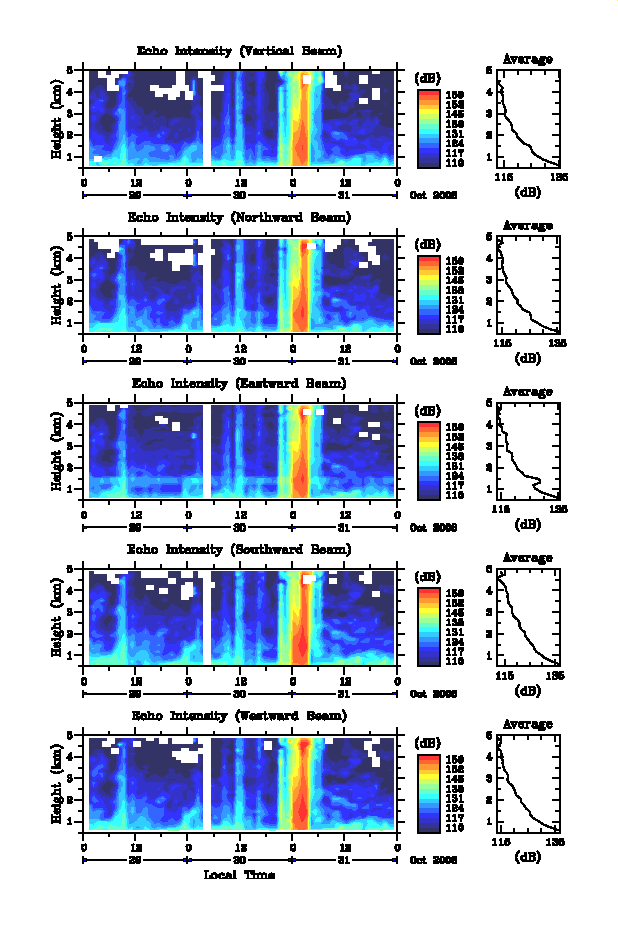

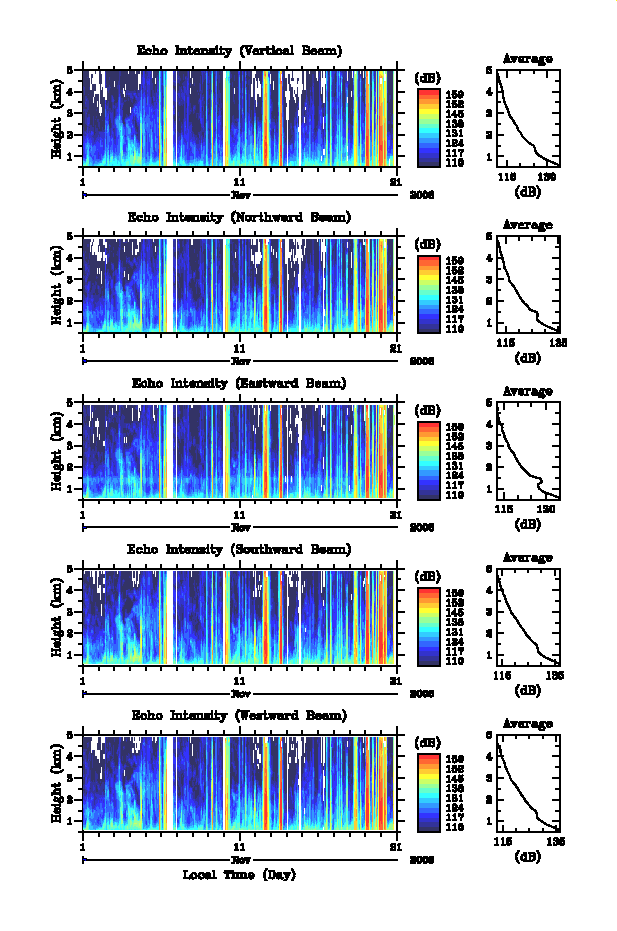

| Echo intensity for Beam 1 | pwr1 | dB | Arbitrary unit |
| Echo intensity for Beam 2 | pwr2 | dB | Arbitrary unit |
| Echo intensity for Beam 3 | pwr3 | dB | Arbitrary unit |
| Echo intensity for Beam 4 | pwr4 | dB | Arbitrary unit |
| Echo intensity for Beam 5 | pwr5 | dB | Arbitrary unit |

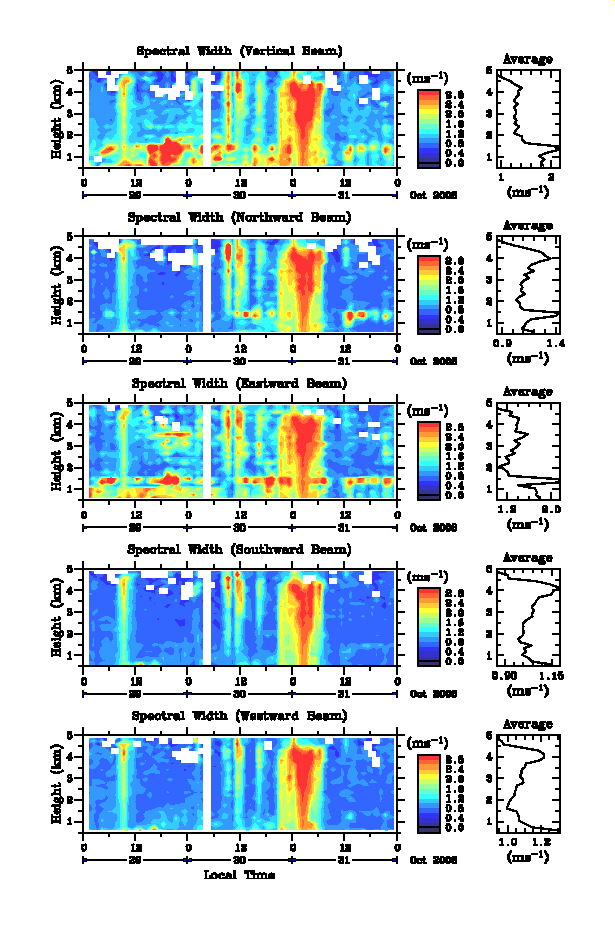

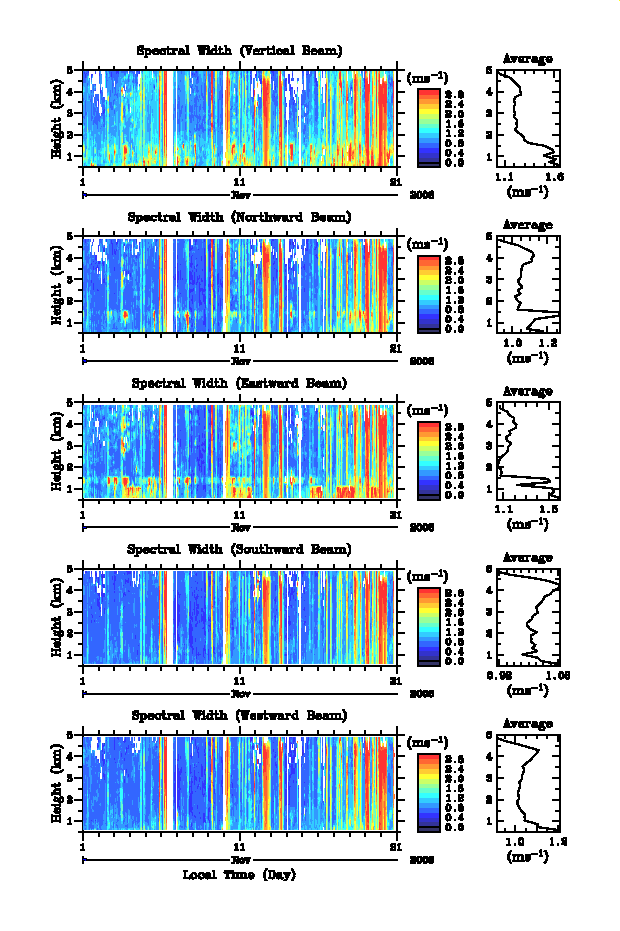

| Spectral width for Beam 1 | wdt1 | m/s | Half power full width |
| Spectral width for Beam 2 | wdt2 | m/s | Half power full width |
| Spectral width for Beam 3 | wdt3 | m/s | Half power full width |
| Spectral width for Beam 4 | wdt4 | m/s | Half power full width |
| Spectral width for Beam 5 | wdt5 | m/s | Half power full width |
Beam Direction
Beam 1 is perpendicular to deck.
Beam 2-4 are Bow, Starboard, Stern, Port directions, respectively,
with 9.8 degrees from Beam 1.
The antenna beam is steered every FFT.
Data Format
Specifications of the SB-LTR
| Parameter | Value |
|---|---|
| Frequency | 1357.5 MHz |
| Output power | 2 kW (Peak envelope) |
| Antenna system | Active phased array (4 m x 4 m) |
| Beam width | 4 deg. (Half power, one way) |
Observation Parameters
| Parameter | Value |
|---|---|
| Subpulse length | 1 micro sec |
| Inter Pulse Period | 50 micro sec |
| Number of coherent integrations | 32 |
| Number of incoherent integrations | 32 |
| Number of FFT points | 128 |
| Pulse compression | 8 bit optimized code (*) |
