Facilities

 Features of the Earth Simulator Building



Seismic Isolation System


ハードウェア

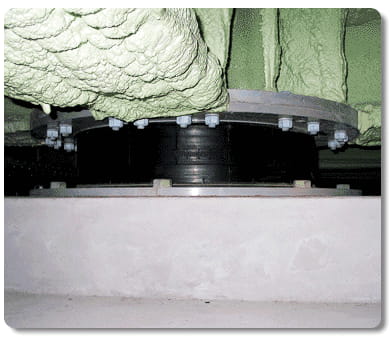

11 isolators
(1ft height, 3.3ft. Diameter, 20-layered rubbers supporting the bottom of the ES building)






Lightning protection system


ハードウェア

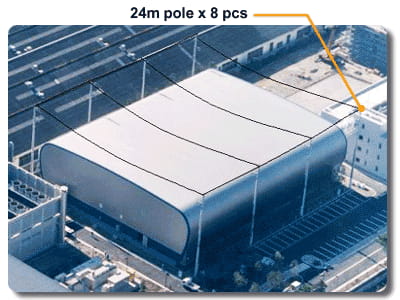

Fig. Earth Simulator Building


  • Four poles at both sides of the Earth Simulator Building compose wire nest to protect the building from lightening attacks.
  • Special high-voltage shielded cable is used for inductive wire which releases a lightening current to the earth.
  • Ground plates are laid by keeping apart from the building about 10 meters.





Illumination


ハードウェア
  • Lighting: Light propagation system inside a tube (255mm diameter, 44m(49yd) length, 19 tubes)
  • Light source: halogen lamps of 1kW
  • Illumination: 300 lx at the floor in average


ハードウェア
The light sources installed out of the shielded machine room walls.
