RID – Reanalysis Intercomparison Dataset

News

  • Note that prior to 10/24/2023, precipitation units for ERA-Interim were in m / 3hours (divide by 10.8 to obtain kg m**-2 s**-1) and units for ERA-20C were in m / day (divide by 86.4 to obtain kg m**-2 s**-1). Files available on the server afterward are all in kg m**-2 s**-1.
  • Note that prior to 7/22/2023, precipitation in JRA-55 was in mm/day whereas it was in kg m**-2 s**-1 in other datasets. Please divide by 86400 to convert from mm/day to kg m**-2 s**-1 if you have downloaded data prior to 7/22/2023. JRA-55 files available on the server afterward are all in kg m**-2 s**-1.

What is the RID?

The Reanalysis Intercomparison Dataset, or RID, is a dataset providing a range of diagnostics to facilitate the intercomparison of reanalysis datasets.

Most diagnostics are provided as zonal means on pressure levels, but a selection of variables is also provided as a function of longitude and latitude on selected pressure levels. Some surface diagnostics are also provided.

An update to the ZMD

The RID is an update to the zonal mean dataset (ZMD) hosted at CEDA. While the ZMD is not updated anymore, the RID receives frequent updates as more recent data is provided by reanalysis centers.

Documentation

An official paper describing the dataset will eventually be prepared, but in the meantime, it is encouraged to cite the original ZMD paper:

P. Martineau, J. S. Wright, N. Zhu, M. Fujiwara, Zonal-mean data set of global atmospheric reanalyses on pressure levels. Earth Syst. Sci. Data 10, 1925–1941 (2018). https://doi.org/10.5194/essd-10-1925-2018

A DOI will also eventually be provided for this webpage.

Terms and Conditions

The RID is provided free of charge, for research purposes only. Commercial use is strictly prohibited under any circumstances. It is provided without any warranties. JAMSTEC does not take any responsibilities. It may be redistributed only when these terms and conditions are attached. The use of the RID should be properly acknowledged e.g., the RID, which was produced by the Japan Agency for Marine-Earth Science and Technology, is used in this study (https://www.jamstec.go.jp/ridinfo/).

Data Access

Data is provided on our THREDDS server which provides OPeNDAP functionalities as well as the ability to download NetCDF files. A python script is provided.

Recently updated reanalysis datasets

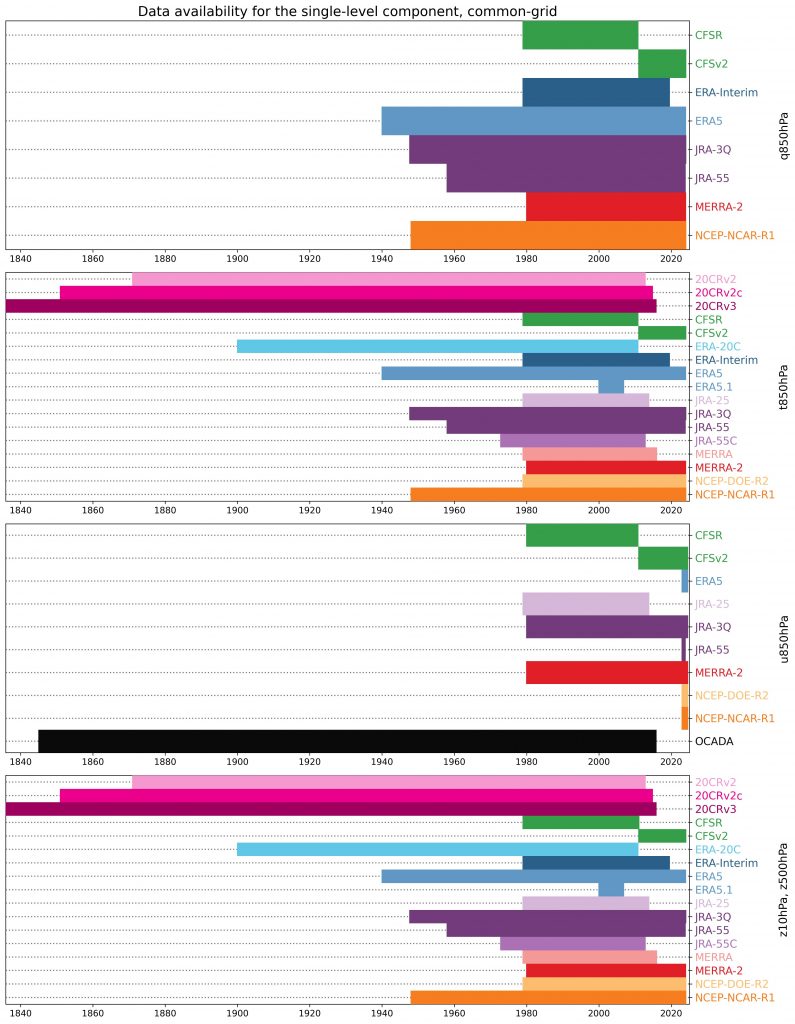

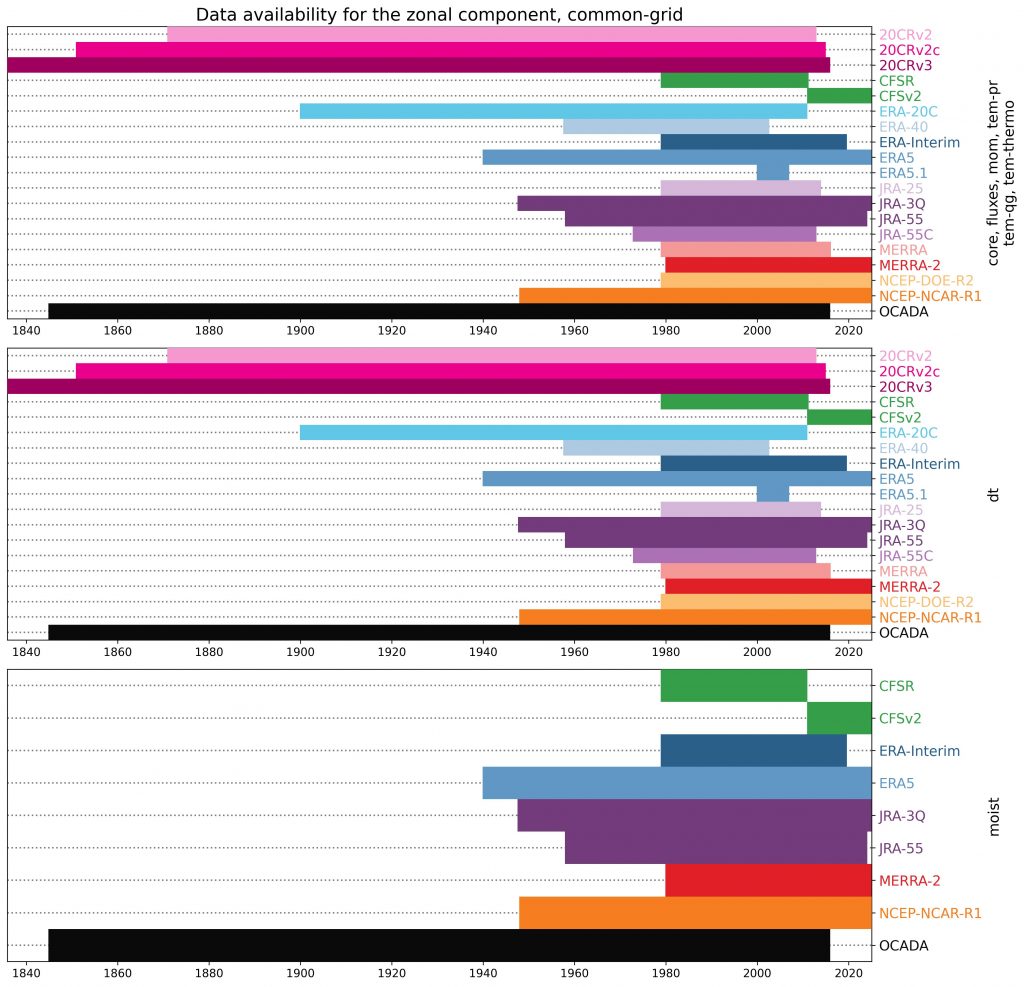

Data Availability Timeline

Data origin

Data sources and reference for each reanalysis are listed in the following table.

DatasetSourceReference
20CRv2https://psl.noaa.gov/data/gridded/data.20thC_ReanV2.htmlCompo et al. (2011)
20CRv2chttps://psl.noaa.gov/data/gridded/data.20thC_ReanV2c.htmlCompo et al. (2011)
20CRv3https://psl.noaa.gov/data/gridded/data.20thC_ReanV3.htmlSlivinski et al. (2019)
CFSRhttps://doi.org/10.5065/D69K487JSaha et al. (2010)
CFSv2https://doi.org/10.5065/D6N877VBSaha et al. (2014)
ERA-20Chttps://doi.org/10.5065/D6VQ30QGPoli et al. (2016)
ERA-Interimhttps://apps.ecmwf.int/datasets/data/interim-full-daily/levtype=pl/Dee et al. (2011)
ERA5https://doi.org/10.24381/cds.bd0915c6Hersbach et al. (2020)
ERA5.1https://cds.climate.copernicus.eu/cdsapp#!/dataset/reanalysis-era5.1-complete?tab=form
JRA-25http://rda.ucar.edu/datasets/ds625.0/Onogi (2007)
JRA-55https://doi.org/10.5065/D6HH6H41Kobayashi et al. (2015)
JRA-55Chttps://doi.org/10.5065/D67H1GNZKobayashi et al. (2014)
JRA-3Qhttps://doi.org/10.20783/DIAS.645Kosaka et al. (2024)
MERRAhttps://doi.org/10.5067/8D4LU4390C4SRienecker et al. (2011)
MERRA-2https://doi.org/10.5067/QBZ6MG944HW0Gelaro et al. (2017)
NCEP-NCAR (R1)http://www.esrl.noaa.gov/psdKalnay et al. (1996)
NCEP-DOE (R2)http://www.esrl.noaa.gov/psdKanamitsu et al. (2002)
Reanalyses included in the reanalysis intercomparison dataset

References

  • Compo, G. P., Whitaker, J. S., Sardeshmukh, P. D., Matsui, N., Al- lan, R. J., Yin, X., Gleason, B. E., Vose, R. S., Rutledge, G., Bessemoulin, P., Brönnimann, S., Brunet, M., Crouthamel, R. I., Grant, A. N., Groisman, P. Y., Jones, P. D., Kruk, M. C., Kruger, A. C., Marshall, G. J., Maugeri, M., Mok, H. Y., Nordli, Ø., Ross, T. F., Trigo, R. M., Wang, X. L., Woodruff, S. D., and Worley, S. J.: The Twentieth Century Reanalysis Project, Q. J. Roy. Meteor. Soc., 137, 1–28, https://doi.org/10.1002/qj.776, 2011
  • Dee, D. P., Uppala, S. M., Simmons, A. J., Berrisford, P., Poli, P., Kobayashi, S., Andrae, U., Balmaseda, M. A., Balsamo, G., and
  • Bauer, P.: The ERA-Interim reanalysis: configuration and performance of the data assimilation system, Q. J. Roy. Meteorol. Soc., 137, 553–597, https://doi.org/10.1002/qj.828, 2011
  • Gelaro, R., McCarty, W., Suárez, M. J., Todling, R., Molod, A., Takacs, L., Randles, C. A., Darmenov, A., Bosilovich, M. G., Re- ichle, R., Wargan, K., Coy, L., Cullather, R., Draper, C., Akella, S., Buchard, V., Conaty, A., da Silva, A. M., Gu, W., Kim, G.- K., Koster, R., Lucchesi, R., Merkova, D., Nielsen, J. E., Par- tyka, G., Pawson, S., Putman,W., Rienecker, M., Schubert, S. D., Sienkiewicz, M., and Zhao, B.: The Modern-Era Retrospective Analysis for Research and Applications, Version 2 (MERRA-2), J. Climate, 30, 5419–5454, https://doi.org/10.1175/JCLI-D-16- 0758.1
  • Kalnay, E., Kanamitsu, M., Kistler, R., Collins, W., Deaven, D., Gandin, L., Iredell, M., Saha, S., White, G., Woollen, J., Zhu, Y., Chelliah, M., Ebisuzaki, W., Higgins, W., Janowiak, J., Mo, K. C., Ropelewski, C., Wang, J., Leetmaa, A., Reynolds, R., Jenne, R., and Joseph, D.: The NCEP/NCAR 40-Year Reanalysis Project, B. Am. Meteorol. Soc., 77, 437–471, 1996
  • Kanamitsu, M., Ebisuzaki, W., Woollen, J., Yang, S.-K., Hnilo, J. J., Fiorino, M., and Potter, G. L.: NCEP–DOE AMIP- II Reanalysis (R-2), B. Am. Meteorol. Soc., 83, 1631–1644, https://doi.org/10.1175/BAMS-83-11-1631, 2002
  • Kobayashi, C., Endo, H., Ota, Y., Kobayashi, S., Onoda, H., Harada, Y., Onogi, K., and Kamahori, H.: Preliminary Results of the JRA-55C, an Atmospheric Reanalysis Assimilating Conventional Observations Only, Sola, 10, 78–82, https://doi.org/10.2151/sola.2014-016, 2014
  • Kobayashi, S., Ota, Y., Harada, Y., Ebita, A., Moriya, M., Onoda, H., Onogi, K., Kamahori, H., Kobayashi, C., Endo, H., Miyaoka, K., and Takahashi, K.: The JRA-55 Reanalysis: General Specifi- cations and Basic Characteristics, J. Meteorol. Soc. Jpn. Ser. II, 93, 5–48, https://doi.org/10.2151/jmsj.2015-001, 2015
  • Kosaka, Y., S. Kobayashi, Y. Harada, C. Kobayashi, H. Naoe, K. Yoshimoto, M. Harada, N. Goto, J. Chiba, K. Miyaoka, R. Sekiguchi, M. Deushi, H. Kamahori, T. Nakaegawa; T. Y.Tanaka, T. Tokuhiro, Y. Sato, Y. Matsushita, and K. Onogi, 2024: The JRA-3Q reanalysis. J. Meteor. Soc. Japan, 102, https://doi.org/10.2151/jmsj.2024-004.
  • Onogi, K., Tsutsui, J., Koide, H., Sakamoto, M., Kobayashi, S., Hat- sushika, H., Matsumoto, T., Yamazaki, N., Kamahori, H., Taka- hashi, K., Kadokura, S., Wada, K., Kato, K., Oyama, R., Ose, T., Mannoji, N., and Taira, R.: The JRA-25 Reanalysis, J. Meteor. Soc. Jpn., 85, 369–432, 2007
  • Poli, P., Hersbach, H., Dee, D. P., Berrisford, P., Simmons, A. J., Vitart, F., Laloyaux, P., Tan, D. G. H., Peubey, C., Thépaut, J. N., Trémolet, Y., Hólm, E. V., Bonavita, M., Isaksen, L., and Fisher, M.: ERA-20C: An atmospheric reanalysis of the twentieth century, J. Climate, 29, 4083–4097, https://doi.org/10.1175/JCLI-D- 15-0556.1, 2016
  • Rienecker, M. M., Suarez, M. J., Gelaro, R., Todling, R., Bacmeis- ter, J., Liu, E., Bosilovich, M. G., Schubert, S. D., Takacs, L., Kim, G. K., Bloom, S., Chen, J., Collins, D., Conaty, A., Da Silva, A., Gu, W., Joiner, J., Koster, R. D., Lucchesi, R., Molod, A., Owens, T., Pawson, S., Pegion, P., Redder, C. R., Reichle, R., Robertson, F. R., Ruddick, A. G., Sienkiewicz, M., and Woollen, J.: MERRA: NASA’s modern-era retrospective analysis for research and applications, J. Climate, 24, 3624–3648, 2011
  • Saha, S., Moorthi, S., Pan, H.-L., Wu, X., Wang, J., Nadiga, S., Tripp, P., Kistler, R., Woollen, J., Behringer, D., Liu, H., Stokes, D., Grumbine, R., Gayno, G., Wang, J., Hou, Y.-T., Chuang, H.- Y., Juang, H.-M. H., Sela, J., Iredell, M., Treadon, R., Kleist, D., Van Delst, P., Keyser, D., Derber, J., Ek, M., Meng, J., Wei, H., Yang, R., Lord, S., Van Den Dool, H., Kumar, A., Wang, W., Long, C., Chelliah, M., Xue, Y., Huang, B., Schemm, J.-K., Ebisuzaki, W., Lin, R., Xie, P., Chen, M., Zhou, S., Higgins, W., Zou, C.-Z., Liu, Q., Chen, Y., Han, Y., Cucurull, L., Reynolds, R. W., Rutledge, G., and Goldberg, M.: The NCEP Climate Fore- cast System Reanalysis, B. Am. Meteorol. Soc., 91, 1015–1057, https://doi.org/10.1175/2010BAMS3001.1, 2010
  • Saha, S., Moorthi, S., Wu, X., Wang, J., Nadiga, S., Tripp, P., Behringer, D., Hou, Y. T., Chuang, H. Y., Iredell, M., Ek, M., Meng, J., Yang, R., Mendez, M. P., Van Den Dool, H., Zhang, Q., Wang, W., Chen, M., and Becker, E.: The NCEP climate forecast system version 2, J. Climate, 27, 2185–2208, https://doi.org/10.1175/JCLI-D-12-00823.1
  • Uppala, S. M., Kallberg, P. W., Simmons, A. J., Andrae, U., Bech- told, V. D. C., Fiorino, M., Gibson, J. K., Haseler, J., Hernandez, A., Kelly, G. A., Li, X., Onogi, K., Saarinen, S., Sokka, N., Al- lan, R. P., Andersson, E., Arpe, K., Balmaseda, M. A., Beljaars, A. C. M., Berg, L. V. D., Bidlot, J., Bormann, N., Caires, S., Chevallier, F., Dethof, A., Dragosavac, M., Fisher, M., Fuentes, M., Hagemann, S., Holm, E., Hoskins, B. J., Isaken, L., Janssen, P. A. E. M., Jenne, R., McNally, A. P., Mahfouf, J. F., Morcrette, J. J., Rayner, N. A., Saunders, R. W., Simon, P., Sterl, A., Tren- berth, K. E., Untch, A., Vasiljevic, D., Viterbo, P., and Woollen, J.: The ERA-40 re-analysis, Q. J. Roy. Meteor. Soc., 131, 2961– 3012
